Bürkert 是流體控制系統的全球供應商，具有70年的流體控制經驗， 在德國和法國擁有多個研發中心和生產廠，并在35個國家和地區設有分公司。 Bürkert 產品與系統適用于對液體和氣體介質進行測量和控制，具備極廣泛的產品系列（包括電磁閥、過程控制閥、分析閥、氣動執行機構、傳感器和控制器等）和解決方案，可對液位、流量、壓力、溫度和分析等參數進行測量和控制。 Bürkert不僅為客戶提供單個的產品，我們的目標是要為客戶提供滿足其實際應用需求的解決方案和完整的系統。Bürkert可為客戶定制不同應用領域的流體控制系統，如化學工業、水和污水處理、醫療設備、食品飲料行業、制藥行業和工業加工等。
用于氣體的質量流量控制器（MFC）/儀表（MFM）8741型有兩種型號：MFC / MFM型8741標準型：帶工業以太網或模擬接口，適用于各種應用。 MFC / MFM型8741büS/ CANopen：適用于現有CANopen網絡，以及工業以太網或現場總線網絡與ME43型現場總線網關的集成。第二種選擇是專為具有多個控制回路的應用而開發的。一個現場總線網關最多可連接32個MFC / MFM。 ME43型將基于CANopen的內部通信（稱為büS：具有擴展功能的CANopen）轉換為工業以太網和現場總線的行業標準。質量流量控制器/儀表始終可以在büS和CANopen通訊之間切換。 8741型可配置為MFM或MFC。可選，最多可校準四種不同的氣體。熱MEMS傳感器直接位于氣流中，因此可以達到非?？斓捻憫?yīng)時間。直動式比例閥作為調節單元，可確保高靈敏度。集成的PI控制器可確保MFC / MFM的出色控制特性。 8741型專門設計用于櫥柜。
Type Description

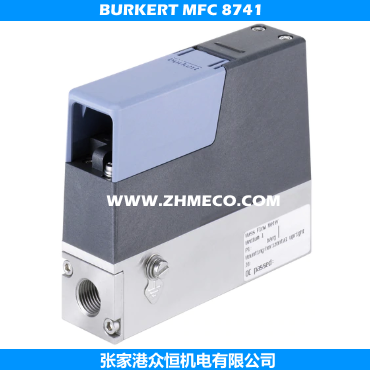

The mass flow controller (MFC) / meter (MFM) type 8741 for gases is available in two versions: MFC / MFM type 8741 Standard: with Industrial Ethernet or analog interface, suitable for a wide range of applications. MFC / MFM type 8741 büS / CANopen: suitable for the integration in existing CANopen networks, as well as Industrial Ethernet or fieldbus networks in combination with the fieldbus gateway of type ME43. The second option was especially developed for applications with multiple control loops. Up to 32 MFC / MFM can be connected to one fieldbus gateway. Type ME43 translates the internal CANopen based communication (called büS: CANopen with extended functionalities) to industry standards for both Industrial Ethernet and fieldbuses. The mass flow controller / meter can always be switched between büS and CANopen communication. Type 8741 can be configured as MFM or MFC. Optional, up to four different gases can be calibrated. The thermal MEMS sensor is located directly in the gas stream and therefore reaches very fast response times. A direct-acting proportional valve as regulating unit guarantees high sensitivity. The integrated PI controller ensures outstanding control characteristics of the MFC / MFM. Type 8741 is especially designed for use in cabinets.
Nominal flow ranges from 0.010 lN/min to 160 lN/min
High accuracy and repeatability
Very fast response times
Easy device exchange through configuration memory
Available in two versions: 8741 Standard and 8741 büS / CANopen

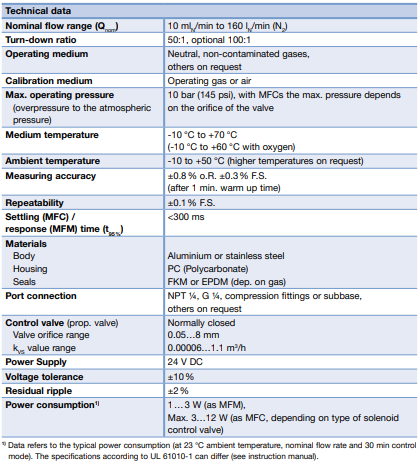

For selecting the correct product please refer to the technical data, images and notes for proper use according to the data sheet.
