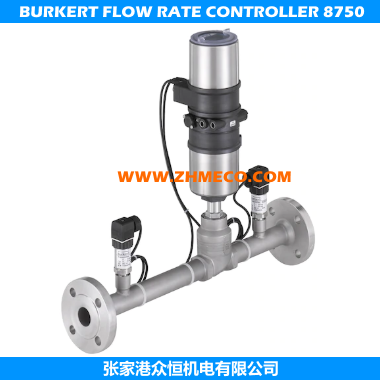

BURKERT FRC TYPE 8750

Bürkert 是流體控制系統的全球供應商，具有70年的流體控制經驗， 在德國和法國擁有多個研發中心和生產廠，并在35個國家和地區設有分公司。  Bürkert 產品與系統適用于對液體和氣體介質進行測量和控制，具備極廣泛的產品系列（包括電磁閥、過程控制閥、分析閥、氣動執行機構、傳感器和控制器等）和解決方案，可對液位、流量、壓力、溫度和分析等參數進行測量和控制。  Bürkert不僅為客戶提供單個的產品，我們的目標是要為客戶提供滿足其實際應用需求的解決方案和完整的系統。Bürkert可為客戶定制不同應用領域的流體控制系統，如化學工業、水和污水處理、醫療設備、食品飲料行業、制藥行業和工業加工等。

8750型流量控制器是一種使用差壓原理測量和控制氣體的系統?？煽慷鴪?jiān)固的系統包括一個2301型ELEMENT連續控制閥，8693型緊湊型過程控制器和8323型兩個壓力變送器。這些組件在一個包括特殊閥體的組裝系統中供貨。 Bürkert流量控制器不需要單獨的流量計?？刂崎y用作孔板。根據閥門上的壓力差和給定的密度和溫度，可以計算標稱流量。因此，閥門的流量特性被提供給過程控制器。然后可以通過改變控制閥的行程來調節體積流量?？刂苹芈返乃薪M件都構建了一個集成系統。流量控制器具有高重復性和大測量范圍。與傳統解決方案相比，通過孔板和控制閥的組合，降低了壓降。通過控制閥的可變節流孔，可以增加測量范圍。較低的裝配成本和易于調試是這一獨特系統的進一步優勢。

• 可靠，強大的系統

• 減少接口

• 孔板和執行器合二為一

• 操作簡便

• 適合獨立操作

Type 8750 - Flow Rate Controller, flow control system for gases

Type Description

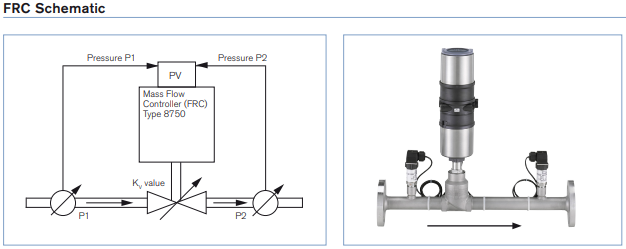

The flow rate controller, Type 8750, is a system to measure and control gases using the differential pressure principle. The reliable and robust system consists of an ELEMENT continuous control valve, Type 2301, with the compact process controller Type 8693 and two pressure transmitters, Type 8323. These components are supplied within an assembled system including a special body. The Bürkert flow rate controller does not need a separate flow meter. The control valve serves as orifice plate. From the pressure difference across the valve and the given density and temperature a nominal flow can be calculated. Therefore the flow characteristics of the valve are given to the process controller. The volume flow can then be adjusted by changing the stroke of the control valve. All components of the control loop build an integrated system. The flow rate controller offers a high repeatability and large measuring range. With the combination of orifice plate and control valve the pressure drop is reduced in comparison to conventional solutions. With the variable orifice of the control valve the measurement range is increased. Low assembly costs and easy commissioning are further advantages of this unique system.

Reliable, robust system

Reduced interfaces

Orifice plate and actuator in one

Easy operation

Fit for stand-alone operation

For selecting the correct product please refer to the technical data, images and notes for proper use according to the data sheet.
